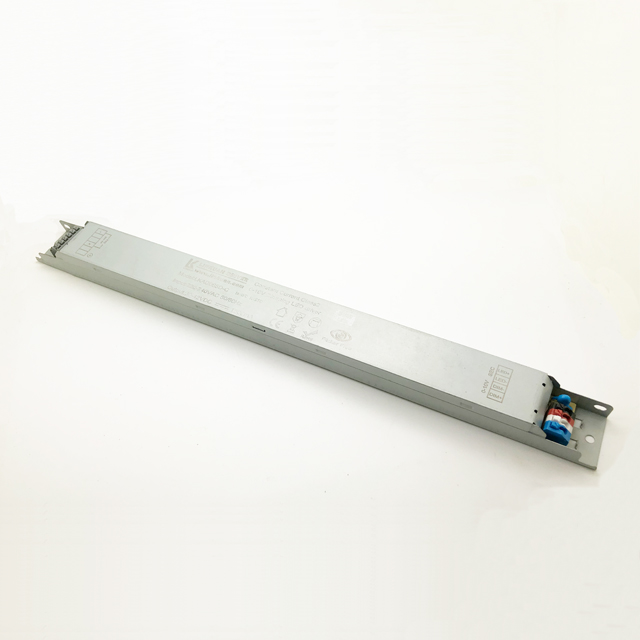

Model |
|
LKAD090D |
|
|
輸入Input |
輸入電壓范圍/Input Voltage rang |
100-120V |
|
|
頻率/Frequency |
50/60hz |
|
|
|
諧波/THD |
≤15% |
|
|
|
功率因數/Power factor |
0.99/120VAC |
|
|
|
輸入電流 Input current（mA) |
854MA |
|
|
|
待機功耗 stand_by power |
≤1W/120VAC |
|
|
|
浪涌電流 Inrush Current(Max.) |
≤35A@120VAC |
|
|
|
漏電流 Leakage Current |
<1MA/110V |
|
|
|
輸出Output |
額定電壓/Rated voltage |
40V |
|
|
空載電壓/No-load Voltage |
≤49V |
|
|
|
工作電壓范圍/working voltage ra |
20-40V |
|
|
|
額定電流/Rated current |
2000mA±20MA |
|
|
|
電流精度/Current precision |
(+/-)3% |
|
|
|
額定功率/Rated power |
95W |
|
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
|
輸出線性調整率Output Line Regul |
±5% |
|
|
|
溫度漂移temperature drift |
±10% Page 1 of 4 |
|
|
保護特性 |
開路保護Output open circuit pro |
有/Enable |
|
|
短路保護Short Circuit Protectio |
打嗝模式/Hiccup mode |
|
|
|
使用環境Environment Requirements |
工作溫度/濕度要求Operating Temp./RH |
-30～+45℃/20～95% |
|
|
儲存溫度,濕度要求Storage Temp./RH |
-40～+80℃/10～95% |
|
|
|
安全和電磁兼容 Safety & EMC |
認證編號/Certificate |
符合CE/ meet CE |
|
|
耐壓 withstand voltage |
3750MA/60S |
|
|
|
絕緣阻抗insulation resistance |
500V>100M |
|
|
|
浪涌等級EMS immunity |
IEC6100-4-5(L-N:1KV) |
|
|
|
安規標準Safety standard |
EN61347,GB19510 |
|
|
|
電磁干擾electromagnetic interfe |
|
|
|
|
電磁抗干擾Electromagnetic Susce |
|
|
|
|
其他Others |
IP等級說明 IP level description |
IP20 |
|
|
質保說明Warranty instructions |
3年/3 years |
|
|
|
尺寸/Size |
0.4*355*30*21MM |
|
|
|
重量/Netweight |
|
|
|
|
注意事項matters needing attention |
1.建議客戶在燈具供電回路中安裝過欠壓保護與浪涌保護裝置，以確保用電安全 1. pls suggest the client to instalt the unde voltage protection device and surge protection device to ensure Electricity safety 2. 電源作為整燈燈具中的一個零部件與終端設備結合使用，因EMC性能受LED燈具及走線的影響，終端設備制 造商需對整套裝置重新進行EMC確認。 2. The power supply is considered a component which will be installed a final equipment.The final equipment must be re-confirmed that it still meets EMC directives. 3. 客戶在使用電源時，注意電源通風散熱和環境溫度，超過TA時要做降額使用 3.Becareful of ambient temperature and heat dissipation during the client use this unit, When exceeding TA, the power supply shall be derated |
||
