Features
|
Model |
|

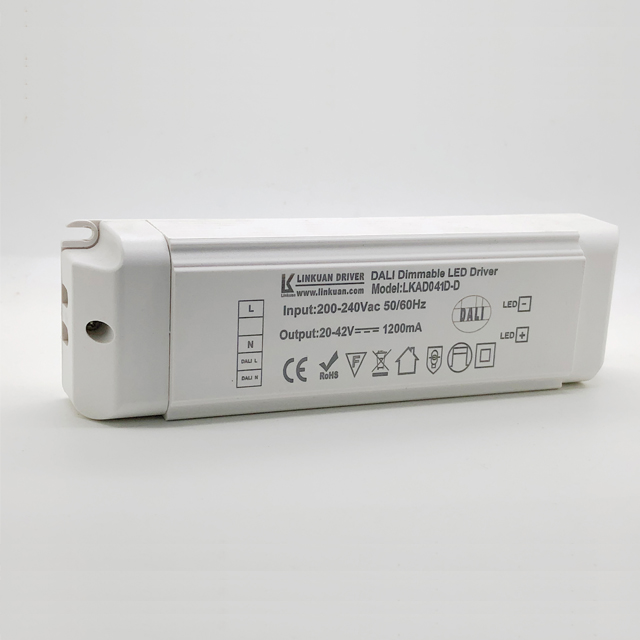

LKAD041D-D |
備注 |
|
輸入Input |
輸入電壓范圍/Input Voltage range |
100-240V |
|
|
頻率/Frequency |
50/60hz |
|
|
|
諧波/THD |
≤15% |
|
|
|
功率因數/Power factor |
0.95/230VAC |
|
|
|
輸入電流 Input current（mA) |
200MA |
|
|
|
待機功耗 stand_by power |
≤0.75W |
|
|
|
浪涌電流 Inrush Current(Max.) |
≤30A@230VAC |
|
|
|
漏電流 Leakage Current |
<1MA/240V |
|
|
|
輸出Output |
額定電壓/Rated voltage |
80V |
|
|
空載電壓/No-load Voltage |
≤80V |
|
|
|
工作電壓范圍/working voltage range |
60-80V |
|
|
|
可選擇電流規格/selectable current specs |
見附表 See Annex |
|
|
|
電流精度/Current precision |
(+/-)3% |
|
|
|
額定功率/Rated power |
40W |
|
|
|
開機延時/Setup Time |
≤0.5s/230VAC |
|
|
|
輸出線性調整率Output Line Regulation |
±5% |
|
|
|
溫度漂移temperature drift |
±10% |
|
|
保護特性 |
開路保護Output open circuit protection |
有 Enable |
|
|
短路保護Short Circuit Protection |
打嗝模式/Hiccup mode |
|
|
|
使用環境 |
工作溫度/濕度要求 |
-30～+45℃/20～95% |
|
|
Environmen |
Operating Temp./RH |
||
|
t |
儲存溫度,濕度要求 |
-40～+80℃/10～95% |
|
|
Requiremen |
Storage Temp./RH |
||
|
|
認證編號/Certificate |
符合CE |
|
|
|
耐壓 withstand voltage |
4KV |
|
|
安全和電磁 |
絕緣阻抗insulation resistance |
500V>100M |
|
|
兼容 |
浪涌等級EMS immunity |
IEC6100-4-5(L-N:1KV) |
|
|
Safety & |
|||
|
EMC |
安規標準Safety standard |
EN61347,GB19510 |
|
|
|
電磁干擾electromagnetic |
EN55015,EN61000-3-2 |
|
|
|
interference |
||
|
|
電磁抗干擾Electromagnetic |
EN61000-4-2.3.4.5.6.8.11.EN61547 |
|
|
|
Susceptibility |
||
|
其他Others |
IP等級說明 IP level description |
IP40 |
|
|
質保說明Warranty instructions |
5年/5 years |
|
|
|
尺寸/Size |
162*45*30 |
|
|
|
重量/Netweight |
|
|
