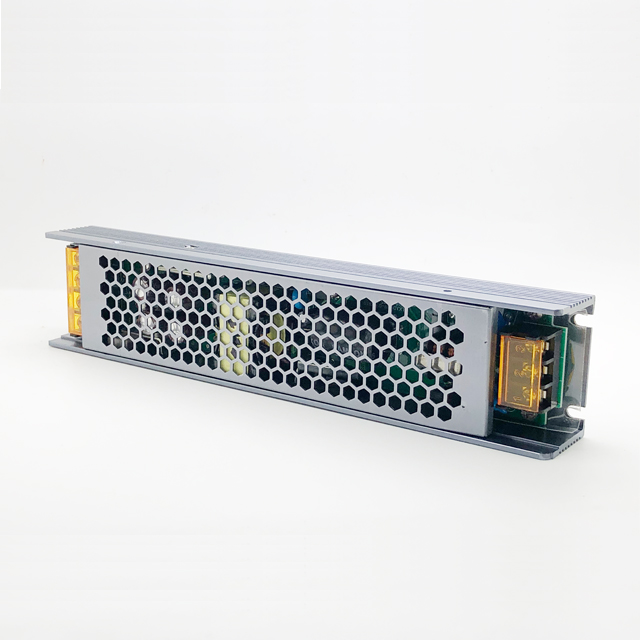

LKAD100V-C 100W constant voltage 12/24V 8A/4A triac dimmable led driver
  • LKAD100V-C 100W constant voltage 12/24V 8A/4A triac dimmable led driver

LKAD100V-C 100W constant voltage 12/24V 8A/4A triac dimmable led driver

  • Product model : LKAD100V-C
  • Input voltage : 200-240Vac
  • Output power(W) : 100W
  • Output voltage : 12Vdc/24Vdc
  • Output current(A) : 8A/4A
  • Light adjustment : Triac Dimming
  • Size(MM) : 169x61x36mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD100V-C 100W constant voltage 12/24V 8A/4A triac dimmable led driver


Features

  • 200-240Vac(50/60Hz) Input
  • Hight efficiency,hight PF,good steady;
  • Constant Voltge Triac dimming;
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20;
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 5 years warranty.

More Details

Model LKAD100V-C
輸入             Input AC電壓范圍/AC Voltage range 200-240V
頻率/Frequency 50/60hz
諧波/THD ≤8%/230VAC
功率因數/Power factor 0.97/230VAC
輸出      Output 額定電壓/Rated voltage 40V
空載電壓/No-load Voltage 45V
DC電壓范圍/DC voltage range 25-42V
DC電流范圍/DC current range 2020-2130mA
電流精度/Current precision (+/-)3%
額定功率/Rated power 84W
開機延時/Setup Time ≤0.5s/230VAC
使用環境    Environment Requirements 工作溫度/濕度要求                    Operating Temp./RH -30～+45℃/20～95%
儲存溫度,濕度要求                   Storage Temp./RH  -40～+80℃/10～95%
安全和電磁兼容 認證編號/Certificate CCC：2016011002846270
UL:E478938
TUV:64.140.16.00628.01
SAA:SF201501544
其他 尺寸/Size L165xW47xH36mm
重量/Net weight /
