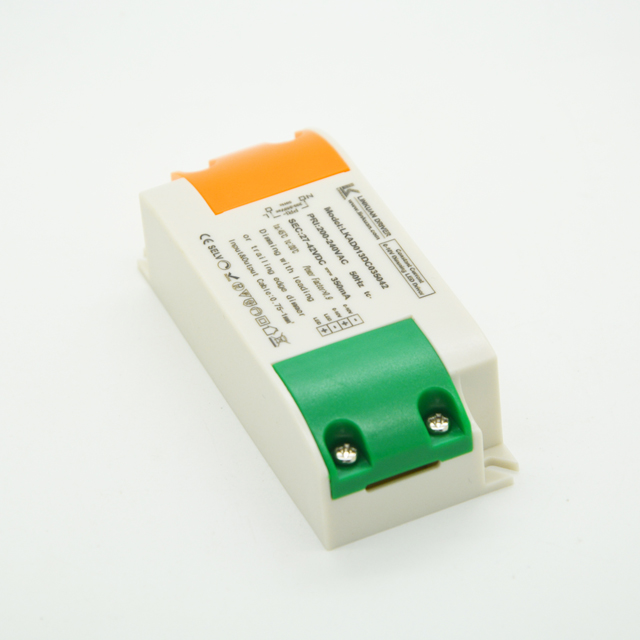

LKAD013D-T 14W 10-42V 350mA triac dimmable led driver with DIP switch

Features

• 200-240Vac(50/60Hz) Input
• Hight efficiency,hight PF,good steady;
• Isolated,leading (or trailing) triac dimming,dimming much smoothly

• independent, ClassⅡconstant current type;
• short circuit/over load/over current/ over temperature protection;
• 100% full load burn-in test;
• degree of protection IP20;
• suitable for LED lighting,ceiling light,down light and panel light;
• 5 years warranty.

---

More Details

Model			LKAD013D-T
輸入             Input	輸入電壓范圍/Input Voltage range		200-240V
	頻率/Frequency		50/60hz
	諧波/THD
	功率因數/Power factor		0.60/220VAC
	輸入電流 Input current（mA)		400MA Max
	待機功耗 stand_by power		≤1W
	浪涌電流 Inrush Current(Max.)		≤30A@230VAC
	漏電流 Leakage Current
輸出      Output	額定電壓/Rated voltage		40V
	空載電壓/No-load Voltage		45V
	工作電壓范圍/working voltage range		25-42V
	可選擇電流規格/selectable current specs		400MA
	電流精度/Current precision		(+/-)3%
	額定功率/Rated power		16W
	開機延時/Setup Time		≤0.5s/230VAC
	輸出線性調整率Output Line Regulation		≤3%
	溫度漂移temperature drift		≤3%
保護特性	開路保護Output open circuit protection		≤45V
	短路保護Short Circuit Protection		打嗝模式/Hiccup mode
使用環境    Environment Requirements	工作溫度/濕度要求                    Operating Temp./RH		-30～+45℃/20～95%
	儲存溫度,濕度要求                   Storage Temp./RH		-40～+80℃/10～95%
安全和電磁兼容 Safety & EMC	認證編號/Certificate		符合CE/ meet CE
	耐壓 withstand voltage		3750MA/60S
	絕緣阻抗insulation resistance		500V>100M
	浪涌等級EMS immunity		IEC6100-4-5(L-N:1KV)
	安規標準Safety standard		EN61347,GB19510
	電磁干擾electromagnetic interference
	電磁抗干擾Electromagnetic Susceptibility
其他 Others	IP等級說明 IP level description		IP20
	質保說明Warranty instructions		3年/3 years
	尺寸/Size		115*40*25MM
	重量/Netweight		125g
