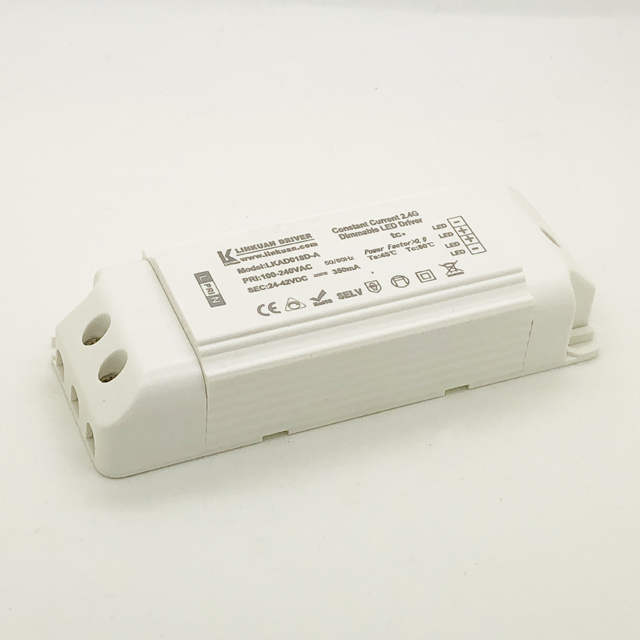

LKAD018D-A 14W 5-42V 350mA CCT Adjusting LED drivers
  • LKAD018D-A 14W 5-42V 350mA CCT Adjusting LED drivers

LKAD018D-A 14W 5-42V 350mA CCT Adjusting LED drivers

  • Product model : LKAD018D-A
  • Input voltage : 200-240Vac
  • Output power(W) : 14W
  • Output voltage : 5-42Vdc
  • Output current(A) : 100-350mA
  • Light adjustment : CCT Adjusting
  • Size(MM) : 121x44x26mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD018D-A 14W 5-42V 350mA CCT Adjusting LED drivers


Features

  • 200-240VAC(50/60Hz) Input
  • High efficiency, high power factor, high stability, high light ratio
  • CCT Adjusting, Cool white to warm white
  • Short circuit,over voltage,over current and over temperature protection;
  • Remote control performance is stable, any angle direction can be controlled.
  • independent, ClassⅡ constant current type;
  • degree of protection IP20;
  • can be achieved Lighting,ceiling light,down light and panel light;
  • 3 years warranty.

More Details

Model

LKAD018D-A

輸入Input

AC電壓范圍/AC Voltage range

100-240V

頻率/Frequency

50/60hz

諧波/THD

≤10%/230VAC

功率因數/Power factor

0.985

輸出Output

額定電壓/Rated voltage

40V

空載電壓/No-load Voltage

45.54V

DC電壓范圍/DC voltage range

26-40V

DC電流范圍/DC current range

300mA

電流精度/Current precision

(+/-)5%

額定功率/Rated power

15W

輸入紋波/Output ripple

<200mV

開機延時/Setup Time

≤0.5s/230VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30～+45℃/20～95%

儲存溫度,濕度要求

Storage Temp./RH

-40～+80℃/10～95%

安全和電磁兼容

認證編號/Certificate

IEC61347-2-13 EN6147-2-13

EN55015

Fcc Part15B

其他

尺寸/Size

121*44*26MM

重量/Net weight

/
