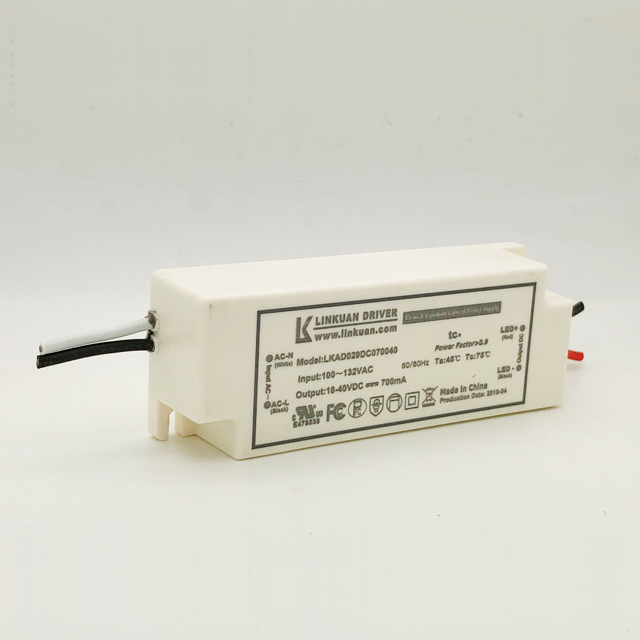

LKAD029D-T 28W 20-42V 700mA Dimmable LED drivers
  • LKAD029D-T 28W 20-42V 700mA Dimmable LED drivers

LKAD029D-T 28W 20-42V 700mA Dimmable LED drivers

  • Product model : LKAD029D-T
  • Input voltage : 120-277Vac
  • Output power(W) : 28W
  • Output voltage : 20-42Vdc
  • Output current(A) : 360-700mA
  • Light adjustment : Triac Dimming
  • Size(MM) : 112x41x25mm
Authentication:
Skype
  • Product Detail
  • Send Inquiry
  • Download

LKAD029D-T UL approved 28W 20-42V 360-700mA Dimmable LED drivers


Features

  • 120-277VAC(50/60Hz) Input
  • Isolated,leading (or trailing) triac dimming,dimming much smoothly
  • Hight efficiency,hight PF,good steady;
  • The copper wire of transformer is Grade F,resist high-temperature 155℃(usually 120℃)
  • independent, ClassⅡconstant current type;
  • short circuit/over load/over current/ over temperature protection;
  • 100% full load burn-in test;
  • degree of protection IP20 (or IP65 for optional)
  • suitable for LED lighting,ceiling light,down light and panel light;
  • 5 years warranty.

More Details

Model

LKAD029D-T

輸入Input

AC電壓范圍/AC Voltage range

120V

頻率/Frequency

50/60hz

諧波/THD

功率因數/Power factor

0.98/120Vac

輸出Output

額定電壓/Rated voltage

40V

空載電壓/No-load Voltage

46V

DC電壓范圍/DC voltage range

20-40V

DC電流范圍/DC current range

700mA

電流精度/Current precision

(+/-)3%

額定功率/Rated power

28W

開機延時/Setup Time

≤0.5s/230VAC

使用環境Environment Requirements

工作溫度/濕度要求Operating Temp./RH

-30～+45℃/20～95%

儲存溫度,濕度要求

Storage Temp./RH

-40～+80℃/10～95%

安全和電磁兼容

認證編號/Certificate

UL:E478938

FCC:WTD14S0918347E

其他

尺寸/Size

111.5*40.5*25.5mm

重量/Net weight
